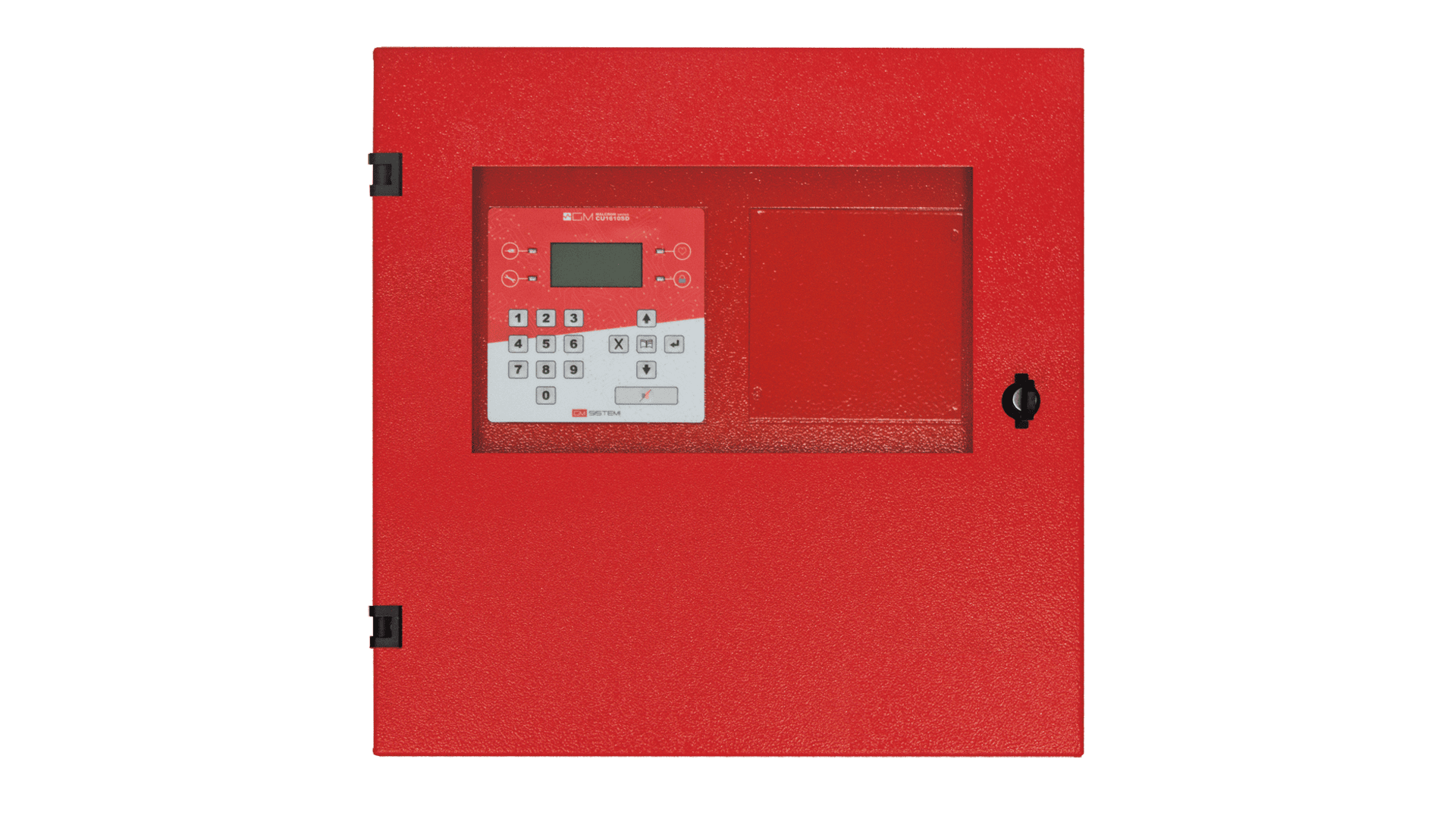

GMCU1610SD-2D/ST

Management up to:
2 independent ines
8 programmable inputs
2+7 programmable outputs

Complete with:
• power supply 24Vdc – 1.5A code GMAL15SWM +

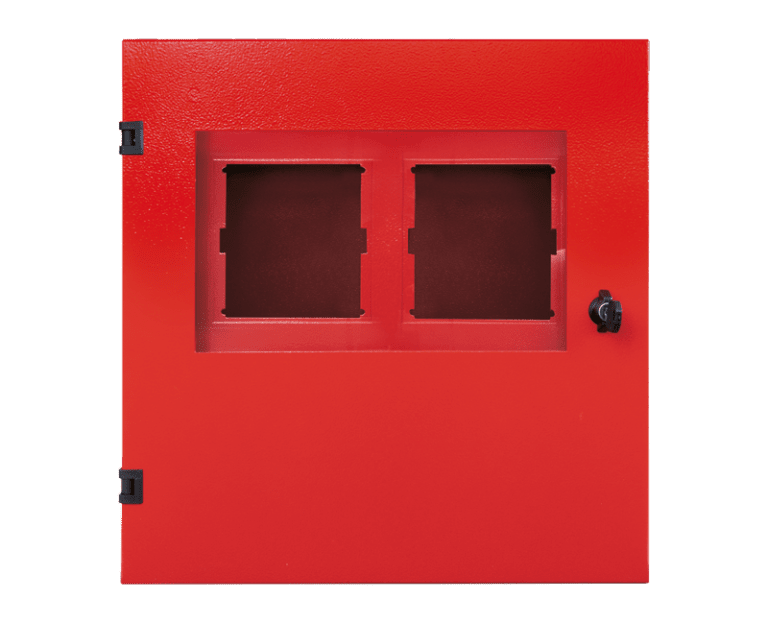

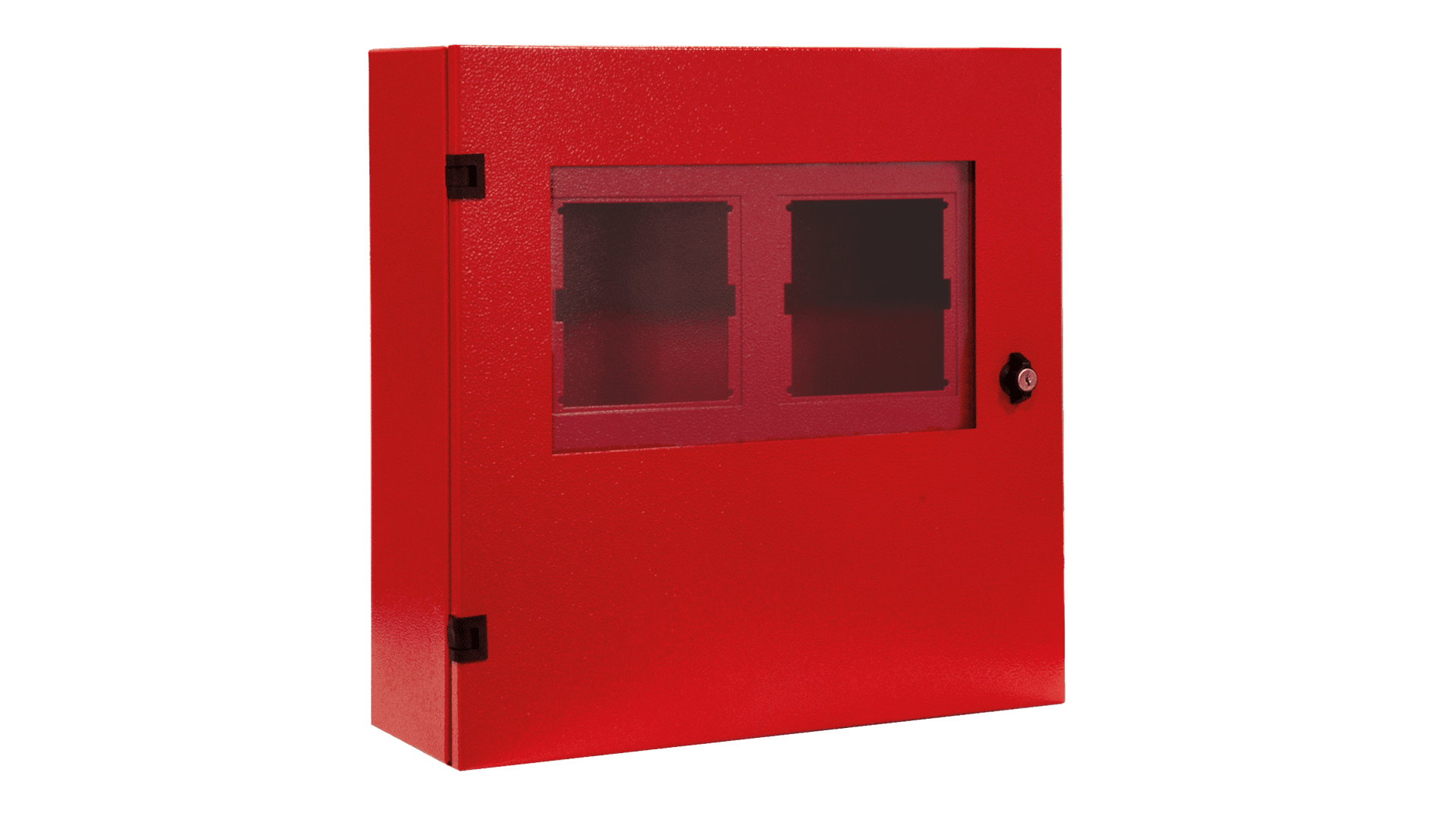

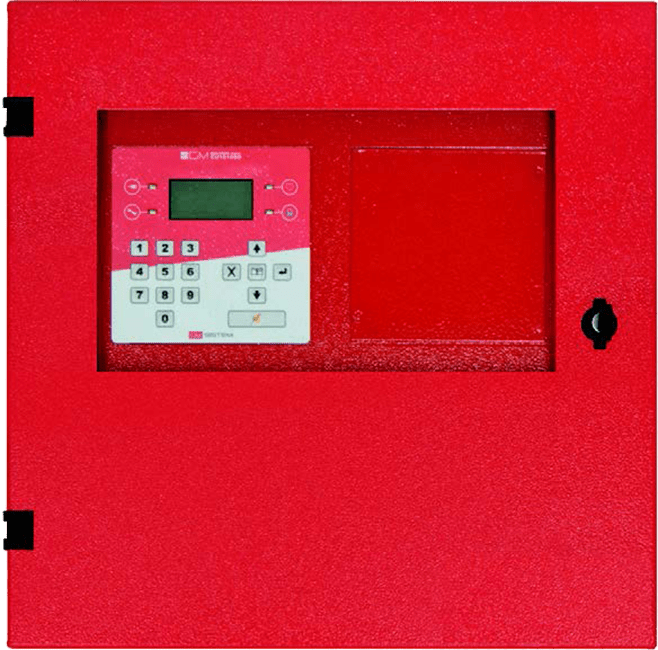

metal enclosure, painted RAL 3000
having dimensions 410 mm x 410 mm x 150 mm
code GMCT2MS
• 4 levels of passwords to access the confi guration
[3 users + 1 technician]
• 500 memory positions with date and time

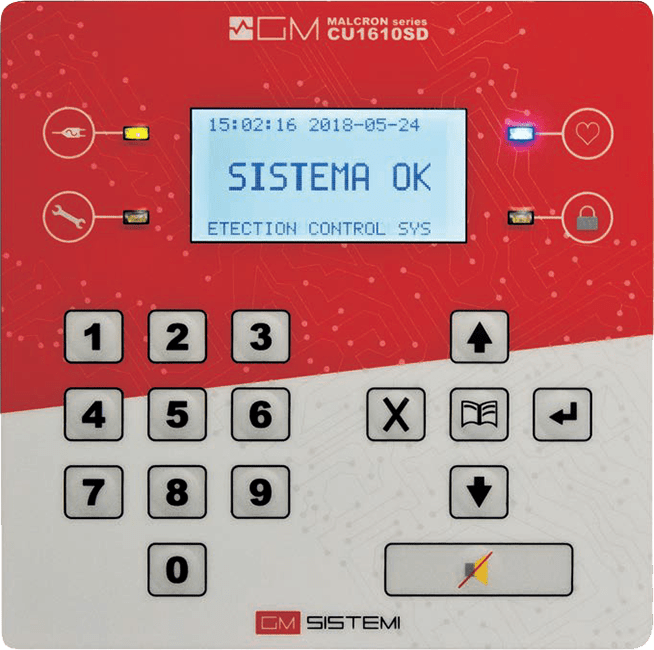

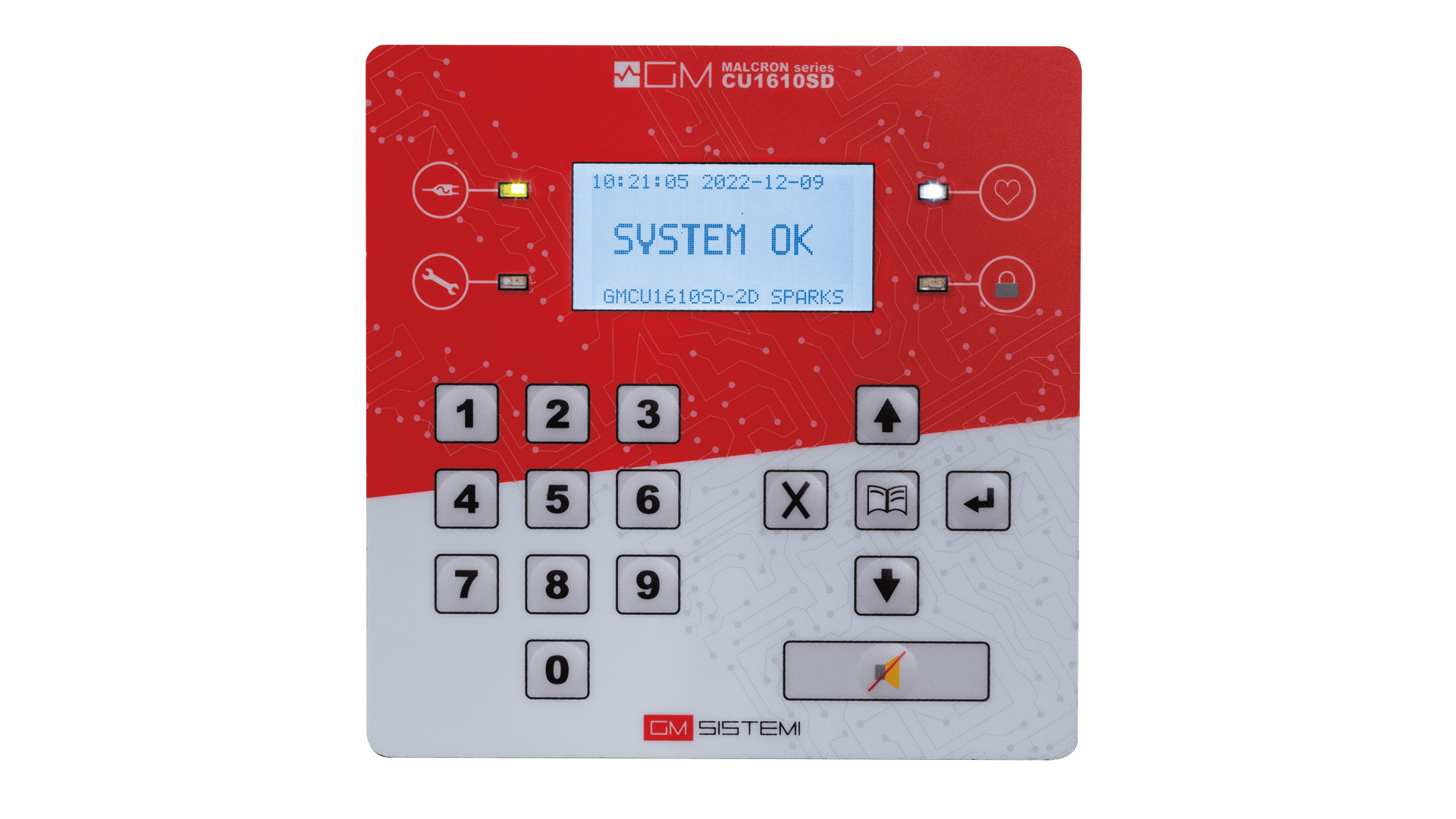

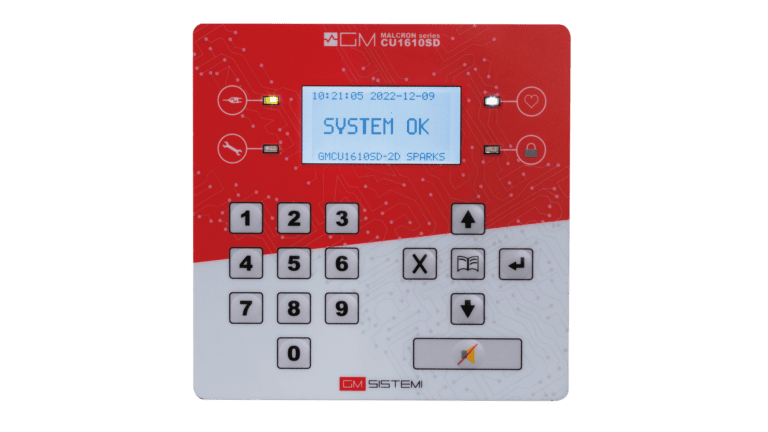

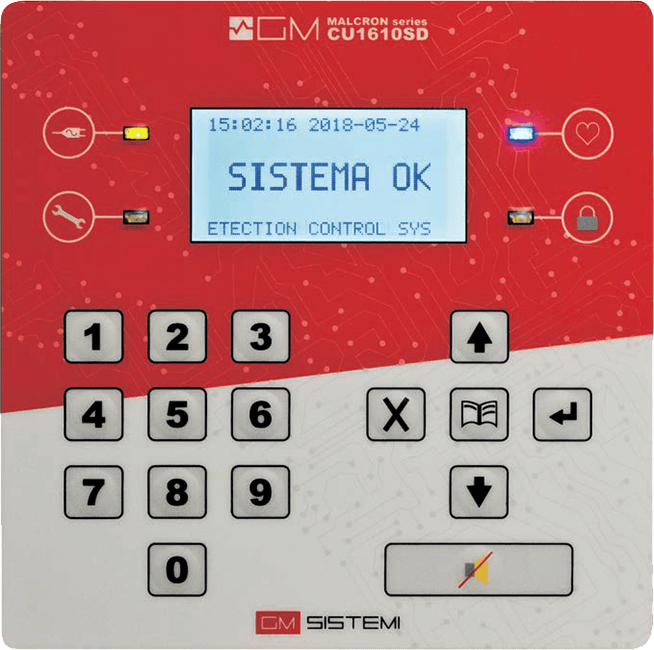

• Backlit display, 128 x 64 pixels.
• Power: 90–260Vac
• Battery and power supply check
• Continuous electricity check
• Extinguishing group management, code GMEXG-P-02:

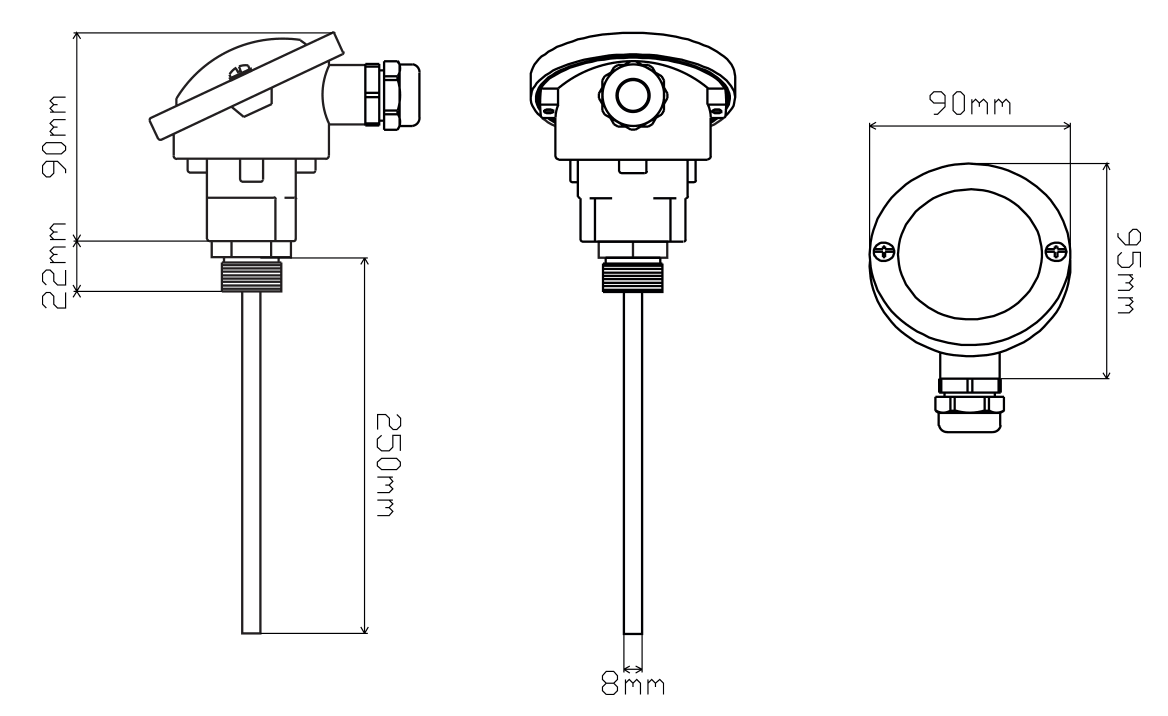

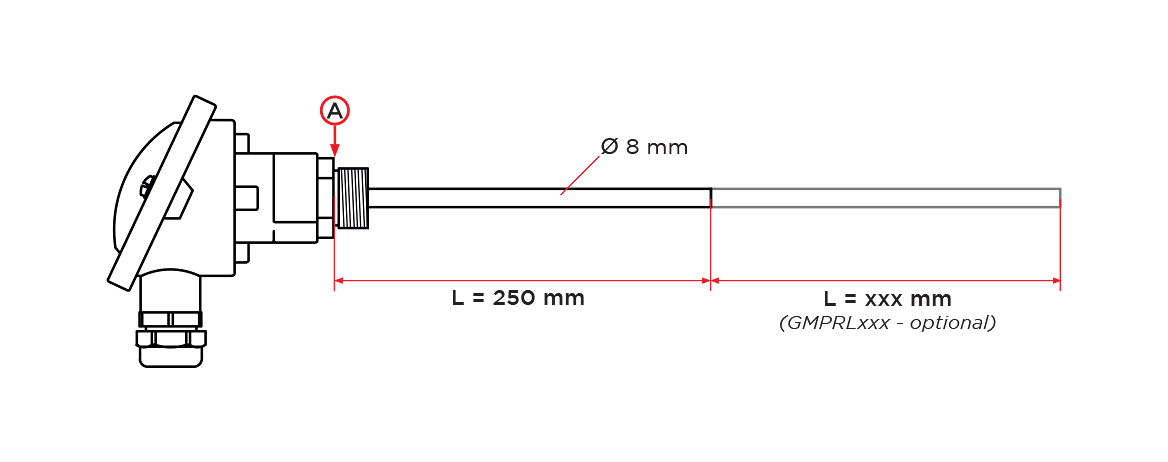

water temperature and pressure, solenoid valve coil,
ball valve position sensor
• Protection: IP54

No autotest software for managing tests lamp [code: all versions]
No backup batteries

INPUTS:
8 input lines (zones) for detectors GMSC243TH-EX
and GMSC245D-FM
Line balancing using 4700-ohm resistors (4K7ohm)
LCD backlit display 128 x 64 pixels
1 green LED for network indication.
1 yellow LED for anomalies.
1 red LED for blocked inputs.
1 blue LED for operation and other functions.
Commands set using membrane keyboard (16 keys)
Memory for 512 events with date, time, and type of event
Internal buzzer for event notifi cations

OUTPUTS:
– 2 relay outputs with close on referred negative,
5A 30Vdc, to activate the solenoid valve with
coil integrity control.
– 3 relay outputs with close on referred negative,
5A 30Vdc, for test lamp, siren, and fl ashing.
– 1 relay output, 5A 30Vdc, for sirens with
polarity inversion.
– 1 relay output with a SINGLE DEVIATOR SWITCH,
5A 30Vdc, for general ALARMS.
– 2 relay SWITCH outputs, 5A 30Vdc,
for general use with NO contact.

POWER:
input from power supply GMAL15SWM
output calibrated to 26Vdc, 1.5A
Response time: < 15 ms (Electronic)
Absorbed power: Max.: 65W
Operating temperature: –5°C – +45°C
with enclosures (GMCT2MS, GMCT6MS)
